Brand Name : | Shine Abrasives |
Model Number : | 11V9 Flaring Cup |
Certification : | ISO |
Price : | Negotiate |
Payment Terms : | Negotiate |
Supply Ability : | 1000 pcs per week |
Delivery Time : | 5 working days |

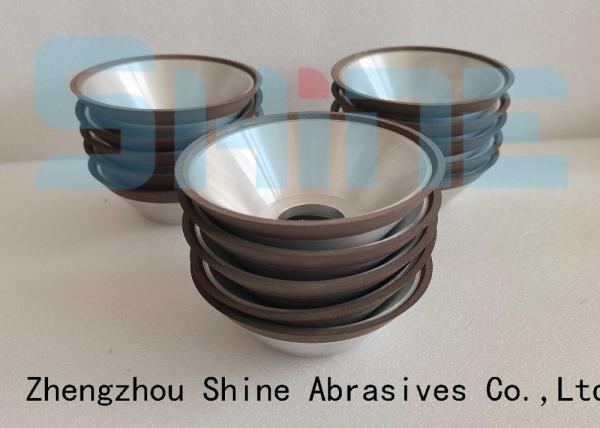

4.5'' Resin Bond Diamond Abrasive Grinding Wheels 11V9 Shape
Shine diamond Resin bond Diamond 11V9 Flaring Cup are used on tool & cutter grinders for grinding carbide tools.
CBN wheels for HSS tools.
Type 11V9 wheels have the diamond segment along the outer periphery of the wheel.
The drawing of Shine Abrasives 4.5'' Resin Bond Diamond Abrasive Grinding Wheels 11V9 Shape
Specifications of Shine Abrasives 4.5'' Resin Bond Diamond Abrasive Grinding Wheels 11V9 Shape
Abrasive Material:Diamond | Bond Type:Resin |
Diamond Depth:3mm | Diamond Grit:100 grit,D126 |
Concentration:100% | Wheel Diameter: 4.5 inch |
Wheel Thickness:45mm | Wheel Bore: 1-1/4 inch/31.75mm |
Wheel Type:11V9 | Wheel Weight:0.4kgs/PC |
The kinds of resin bond diamond wheels.
Parallel grinding wheel: mainly used for cylindrical grinding and cutting edge machining of cemented carbide.
Parallel arc grinding wheel: mainly used for forming grinding of cemented carbide and forming grinding of arc surface.
Double-sided concave grinding wheel: mainly used for grinding measuring tools and coreless grinding wheel machines
Double-bevel grinding wheel: mainly used for forming grinding of carbide gear hobs and thread tools
Bowl-shaped and cup-shaped grinding wheels: mainly used for sharpening of carbide tools, high-speed steel tools, and also for milling.
Application picture for reference.
Attention:Workers should ensure that you are fully informed on the safe operation of abrasive cutting and grinding wheels
![]() |
