Resin Metal Bond Diamond Bronze Sintered Cutting Disc CBN Grinding Wheel Glass Cutting Disc

Ask Lasest Price
Brand Name :	Shine Abrasives
Model Number :	1A1R
Certification :	ISO
Price :	Negotiate
Payment Terms :	L/C, T/T
Supply Ability :	10000 PCS per week
Delivery Time :	5 working days

Add to Cart

Product Details
Company Profile

Resin Metal Bond Diamond Bronze Sintered Cutting Disc CBN Grinding Wheel Glass Cutting Disc

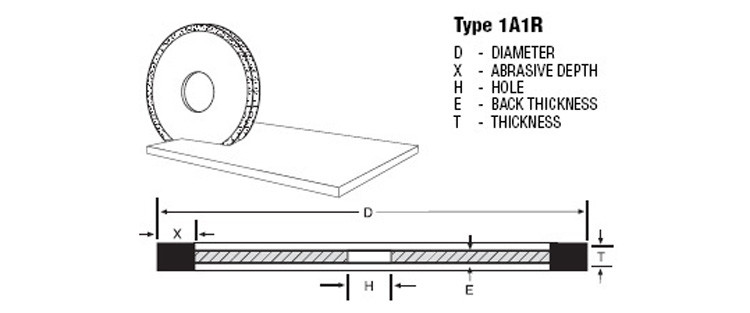

Specification	D (mm)	T (mm)	E(mm)	H (mm)	X (mm)	Grit
1A1R 100x1.0x31.75x10mm	100	1	0.8	31.75	10	D126 or any other
1A1R 125x1.0x31.75x10mm	125	1	0.8	31.75	10	D126 or any other
1A1R 150x1.0x31.75x10mm	150	1	0.8	31.75	10	D126 or any other
1A1R 150x0.8x31.75x10mm	150	0.8	0.6	31.75	10	D126 or any other
1A1R 150x0.5x31.75x10mm	150	0.5	1	31.75	10	D126 or any other
1A1R 200x1.0x31.75x10mm	200	1	0.8	31.75	10	D126 or any other
1A1R 300x1.0x31.75x10mm	300	1	1.3	31.75	10	D126 or any other
1A1R 400x1.0x31.75x10mm	400	1	1.5	31.75	10	D126 or any other

Products Description:

Super thin Resin Metal Bond Diamond Bronze sintered cutting disc CBN grinding wheel Glass cutting disc

Our comapny developed Super thin 1A1R Diamond and CBN Wheels, which
can be used for Cut-off, Cutting, Grooving, Slotting, Dicing and
etc. Resin Bond and metal bond are available for different
applications. Diameter can be 50mm to 400mm. Thickness is from
0.5mm to 2mm. Grits can be, D151, D181, D126, D107, D91, D76, D64,
D46 and others. Cutting material can be: tungsten carbide, ceramic,
glass, stone, Gem and gemstones, steel and many other materials.

Product Features.

1) Fast Cutting, improve cutting effeciency
2) Free of chipping, Excellent cutting surfaces and edges
3) High Precise Cutting and grooving, High accurancy.
4) Smooth cutting, no clipping of the blades
5) Much longer life than tradtional abrasive cutting wheels.
6) Customized design is available.
Notice
1. Before use, make sure that the grinding wheel is fixed in place
and will not shake .
2. Use the grinding wheel at the required speed.
Resin bond 1A1rR diamond grinding wheels are compound of steel
plate and superabrasive work layer. The steel plate has high
strength and high rigidity. ultra-thin cut off wheels are generally
used for deep cutting and grooving.
Resin bond ultra-thin cut off wheels mainly used for slotting and
cutting of ceramics, crystal, quartz, gems, carbide, magnetic
materials, electrical light wave glass tube and optical glass;Resin bond CBN cutting wheels mainly used for slotting and cutting
of tool steel, mould steel, bearing steel, heat resistance
steel,stainless steel and cast iron.
