Resin Bond CBN Wheels 14A1 200mm Diameter For HSS Tools Grinding

Shine Abrasives resin bond 14A1 CBN wheels with diameter 200mm, hole is 32mm, CBN rim width 8mm,and thickness 3mm.

Mainly used for HSS tools Grinding or sharpening.

Cubic boron nitride (CBN) grinding wheel is suitable for processing the following products:

① high manganese steel;

② high chromium, nickel, molybdenum alloy steel;

③ chilled cast iron (HS80～90);

④ all kinds of hardened steel ( HRC55～65);

⑤ All kinds of cast iron (HB200～400), etc., and have been used in domestic automobiles (gears, flywheels, shafts, bearings, etc.),

rollers, slurry pumps (impellers, volutes, guard plates, sheaths, etc. machining), molds, cylinder liners;

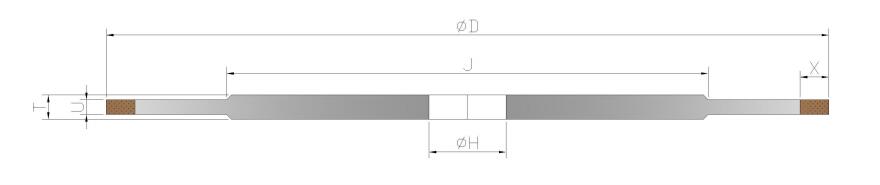

The drawing of Shine Abrasives Resin Bond CBN Wheels 14A1 200mm Diameter For HSS Tools Grinding

Specifications of Shine Abrasives Resin Bond CBN Wheels 14A1 200mm Diameter For HSS Tools Grinding

Features of Shine Abrasives Resin Bond CBN Wheels 14A1 200mm Diameter For HSS Tools Grinding

High quality synthetic CBN abrasives

Optimized resin bond and formulation

High material removal rates

Longer wheel work life.

Free cutting

Good wheel shape and form holding.

Application picture for reference.
