1A1R Diamond Wheels 150mm Diameter 0.8mm Thickness For Carbide
Shine Abrasives 1A1R Diamond Wheels 6 Inch 150mm diameter For
Tungsten Carbide tools Cutting
the cutting off wheels with Resin bond, the thickness is 0.8mm, the
wheels bore is 31.75mm.
Wheels are Good self-sharpening, sharp cutting, flexible binder,
can improve surface quality, mainly used for carbide cutting, but
also can be used for quartz borosilicate glass tube, glass cup (tea
leak) opening, quartz crucible.
The matrix-type diamond cutting disc means that the outer ring belt
of the grinding wheel is the abrasive working layer,
and the central part is made of high-strength and high-rigidity
metal material. Since the high-rigidity metal material is used as
the steel core and the working layer of the outer ring, the With
high rigidity, high load and deep cutting can be realized. It is
generally slightly thicker in size.
Due to its good rigidity, it is mostly used for grooving and
cutting of medium and large cutting depths, such as cutting of
carbide bars.
Drawing of Shine Abrasives 1A1R Diamond Wheels 150mm Diameter 0.8mm Thickness For Carbide
Main sizes form of Shine Abrasives 1A1R Diamond Wheels 150mm Diameter 0.8mm Thickness For Carbide
| Abrasive Material:Diamond | Bond Type:Resin |
| Diamond Grit:D151 | Wheel Diameter: 6inch 150mm |
| Wheel Bore:31.75mm | Rim width:7mm |
| Wheel Thickness:0.8mm | Wheel core: Steel |
Other standard sizes also are available as requested.

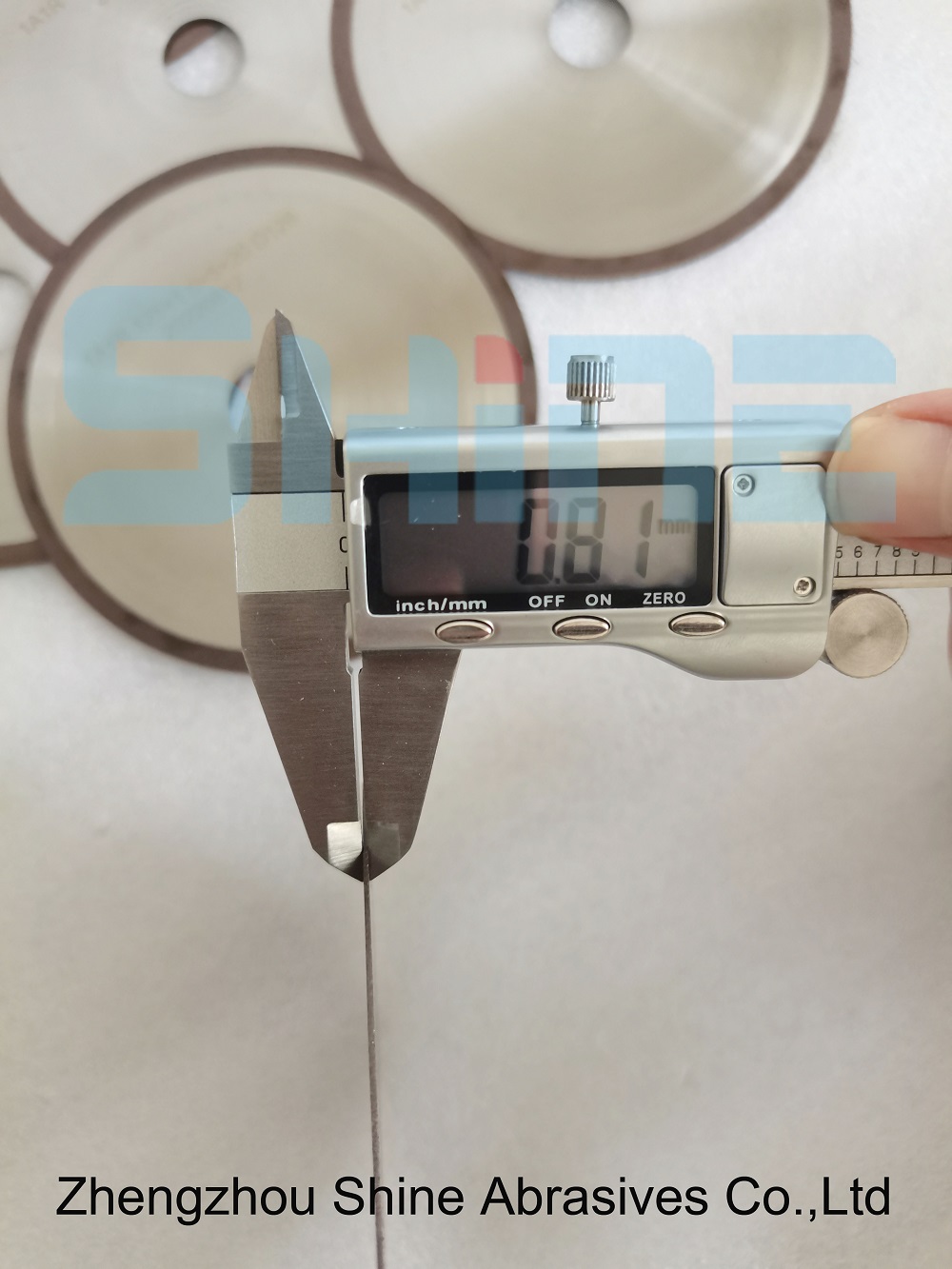

0.8mm thickness picture as below.
Features of Shine Abrasives 1A1R Diamond Wheels 150mm Diameter 0.8mm Thickness For Carbide
High good quality diamond abrasives and experienced resin bond for
free cutting.
Long time wheel working life.
Cost-efficient.
Fast delivery for usual sizes.
Application picture for reference.
Attention:Workers should ensure that you are fully informed on the
safe operation of abrasive cutting and grinding wheels
