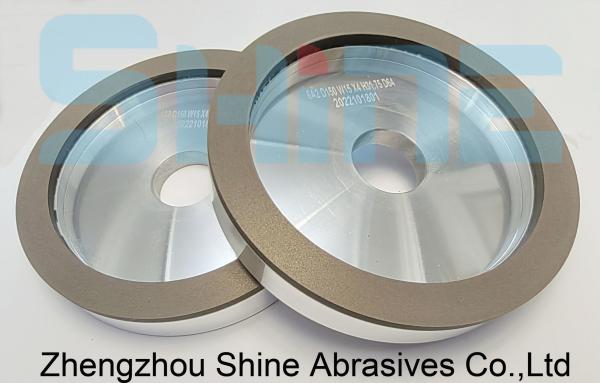

6'' Resin Bond 6A2 Diamond Cup Wheel For Carbide Tools Grinding
Shine Abrasives Resin Bond Diamond Cup Wheel 150mm is main used for
grinding or sharpening carbide tools. knife,cutter,etc.
Diamond & CBN grinding wheels are the most commonly used
SuperAbrasive product currently consumed. Resin bond product, as
the name describes, is a combination of resins and fillers pressed
under heat and pressure that are easily dressed to angle forms,
straight forms, and special radius forms. The very fine finish can
be achieved using resin bond products.
Grinding the edges relief angles of carbide saw blades and other
all kinds of carbide tools
Sharpening Carbide Circular saw Blades or other carbide tools like
Router Bits
Drill Bits
Carbide spiral bits
Shaper Cutters
Re-Grinding all kinds carbide tools.
CBN wheel is for HSS saw blade.
The drawing of Shine Abrasives 6'' Resin Bond 6A2 Diamond Cup Wheel
For Carbide Tools Grinding
Specifications of Shine Abrasives 6'' Resin Bond 6A2 Diamond Cup Wheel For Carbide Tools Grinding
| Abrasive Material:Diamond | Bond Type:Resin |
| Diamond Rim Size:15x4mm | Diamond Grit:150 grit, |
| Concentration:100% | Wheel Diameter: 6inch 150mm |
| Wheel Thickness:25mm | Wheel Bore: 31.75mm |
| Wheel Type:6A2 Cup | Wheel Weight:1.0kgs/PC |
Features of Shine Abrasives 6'' Resin Bond 6A2 Diamond Cup Wheel For Carbide Tools Grinding
Wheels with Good shape form holding,
Bond are available for wet or dry grinding.
Many different Diamond or CBN grits are available.
Wheels with good long time working life.
Application picture for reference.
