Brand Name : | Shine Abrasives |
Model Number : | 4V2 1A1 14A2 |
Certification : | ISO |
Price : | FOB |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000 PCS in one week |
Delivery Time : | 5 work days |

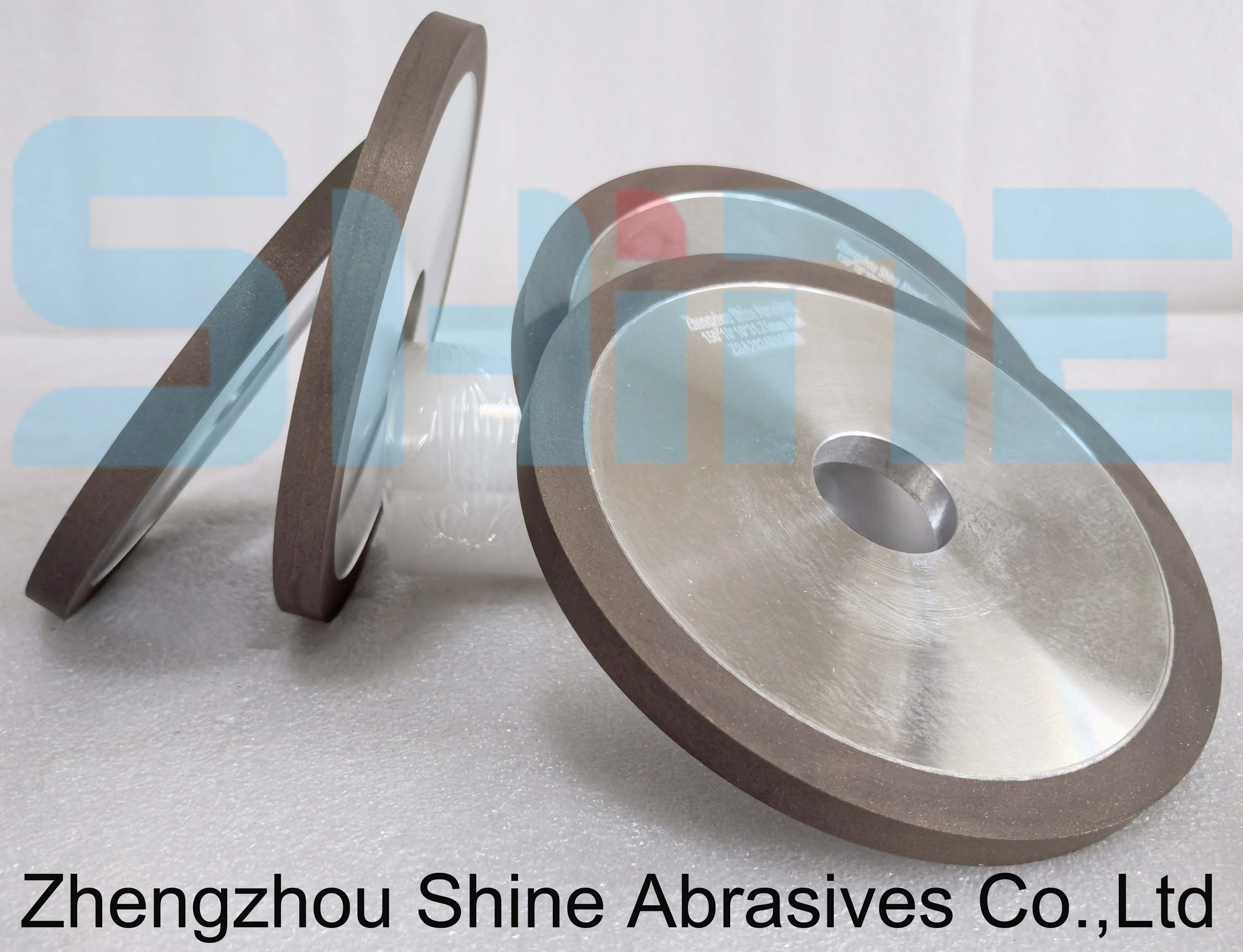

The flat resin diamond grinding wheel is mainly used for cylindrical grinding and cutting edge processing of cemented carbide.
Resin bond diamond grinding wheel is suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.
Type: | 1A1 Flat resin bond diamond grinding wheel |
Concentration: | 50%,75%,125%,150% |
Mesh | 46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding); 280#,320#,400#,500#,600#(fine grinding); 800#,1000#,1200#,1500#,2000#,3000#(polishing) |
Specification: | D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75 D175-H127-X4-T5 D250-H40-X10-T3 D300-H127-X10-T40 D350-H127-T20-X10 D400-H127-T40-X10 D500-H203-X10-T32 Specification sizes can be customized |
Application: | hard alloy,high alumina porcelain,optical glass agate gemstone,
semiconductor material,ceramics,stone,etc |
Mainly used in the processing methods like plane grindingn, edge grinding,such as various material of the circular saw blade,hard alloy, precision cereamics,high speed steel,with the advantages of sharp cutting,good surface quality of the workpiece,good self sharpening, low dressing frequency, good shape retention,long service life and so on.
![]() |
